Revolutionizing Bridge Abutment Drainage: CDOT I70 Drainage Restoration

The primary goal of the project was to restore effective drainage to the steel sheet piling bridge abutment using the JET Filter Drainage System.

Drainage Dilemma

The Colorado Department of Transportation (CDOT) initiated a vital infrastructure project, replacing two structurally deficient bridges on Interstate 70 (I-70) over Smith Road and the Union Pacific Railroad. These curved bridges, comprised of welded steel girders with a concrete deck. Part of the project’s core objective was to establish an efficient drainage system within the steel sheet piling bridge abutment, enhancing structural integrity and ensuring the new bridges’ durability.

Solution

The primary goal of the project was to restore effective drainage to the steel sheet piling bridge abutment during the bridge replacement process. The chosen drainage solution was the JET Filter Drainage System, known for its durability and efficiency. This system was aimed at preventing water-related issues that could undermine the bridge’s structural integrity.

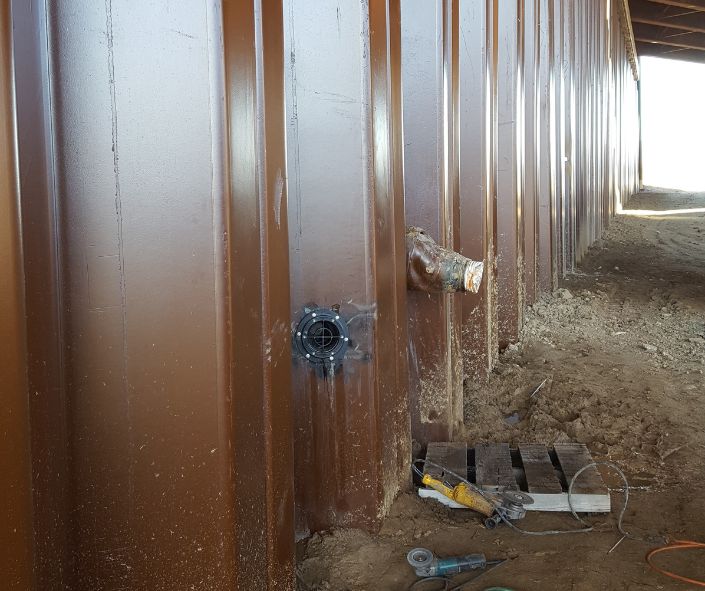

GEOCAL, in collaboration with CDOT, designed and executed the installation of the JET Filter Drainage System, designed to suit the challenging bridge abutment configuration. The selected JET Filter 6” open-end ASTM Steel Housing offered durability and corrosion resistance, while the Mirafi® Filter-weave FW 300 media provided efficient water management and soil protection.

The successful implementation of the JET Filter Drainage System significantly improved the project’s success and the longevity of the infrastructure. It ensured that the new bridges are resilient against corrosion and erosion challenges. The project, which achieved its primary goal of restoring abutment drainage, now stands as an example of how innovative drainage solutions can enhance the durability and structural integrity of bridges. This collaboration between CDOT, GEOCAL, and Ames Construction serves as a valuable model for tackling complex drainage issues in bridge projects, underlining the importance of proactive infrastructure maintenance and innovative engineering solutions.



At a Glance

Project Location: Aurora, CO
Owner: Colorado DOT Region I
Engineer: GEOCAL
Contractor: Ames Construction

  • Restored drainage to steel sheet piling bridge abutment as part of a restoration process for two structurally deficient bridges.
  • 7 Units of the 6″ Open-End JET Filters were sufficient to restore drainage

Street View: https://bit.ly/3Mpt1B1

Check out the Video

Product Used

6″ Open-end ASTM Part# JF6PC
