Surface Preparation Techniques for Sheet Piling Maintenance

Sheet piling requires consistent maintenance because exposure to water, soil, and atmospheric conditions leads to corrosion and coating breakdown over time. Effective surface preparation ensures that protective coatings adhere properly and continue shielding the steel from harsh environments. Reliable preparation methods form the foundation of long term performance, and their selection depends on the condition of the steel, the environment, and the coating system being used. Early identification of corrosion, combined with the correct tools and standards, reduces long term repair costs and extends the service life of the structure.

Understanding Surface Conditions

Common Degradation Issues

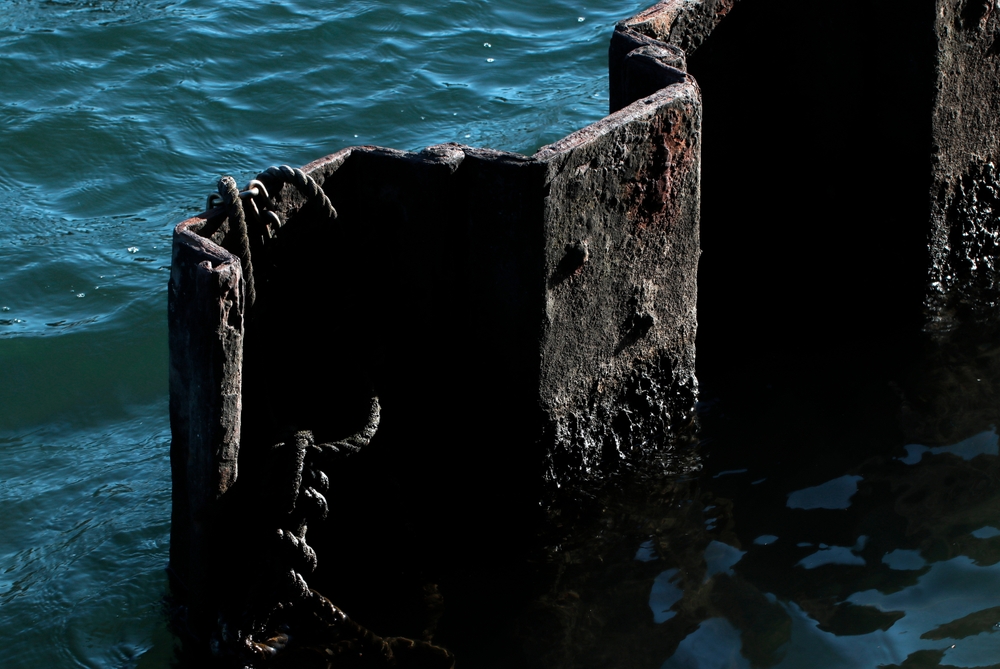

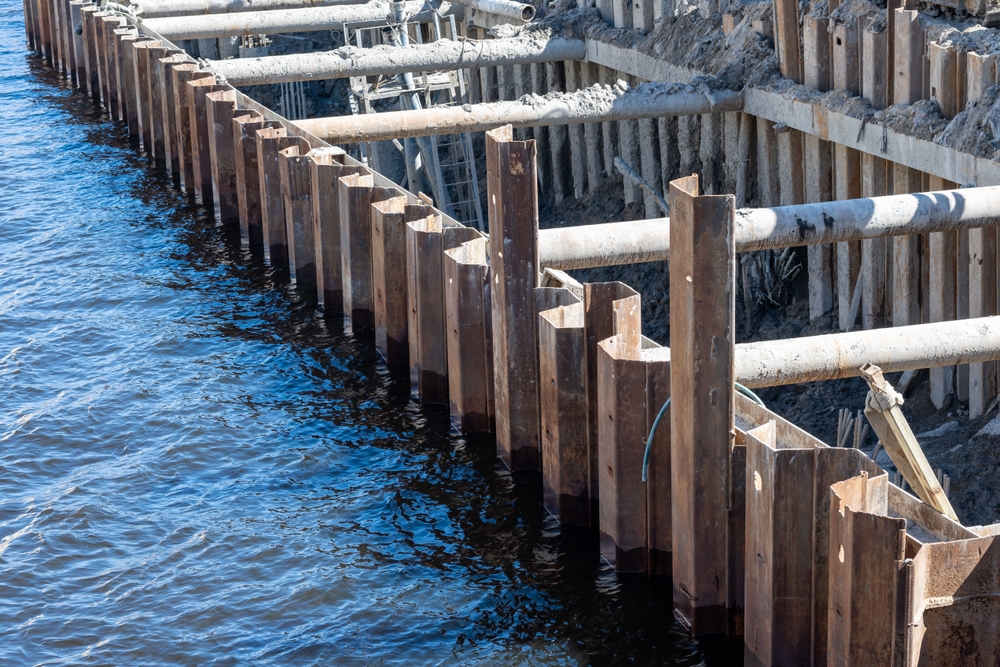

Steel sheet piles face a range of deterioration mechanisms, including rust formation, pitting, abrasion, and coating delamination. Marine structures are heavily affected by saltwater exposure, which accelerates oxidation and promotes deep pitting. Sheet piles used in inland applications may encounter cycles of wetting and drying, along with soil conditions that encourage scale buildup. As coatings age or become compromised, water and contaminants penetrate beneath the film, resulting in underfilm corrosion. Before new coatings are applied, these deteriorated layers must be removed to expose a clean, stable substrate that can properly accept a protective system. Early in the preparation process, crews often turn to surface preparation equipment to remove loose rust and coatings while reducing the amount of manual work required.

Why Surface Cleanliness Matters

Surface cleanliness is essential for proper adhesion of industrial coatings. Contaminants such as chlorides, dust, grease, and mill scale create barriers that prevent coating penetration, reducing the coating’s ability to bond with the steel. Industry standards like SSPC SP 2, SP 3, SP 11, and ISO 8501 define levels of cleanliness and surface profile requirements for steel surfaces. Achieving these specifications is crucial for long term performance in both marine and infrastructure applications. High performance coatings are engineered to interact with a defined surface texture, and failing to achieve that profile can lead to premature failure.

Manual and Mechanical Cleaning

Hand Tools and Power Tools

Manual cleaning methods, including scraping, wire brushing, and grinding, are used for localized or small scale maintenance work. They remove loose materials but cannot consistently generate the angular profile needed for coatings that require strong mechanical bonding. Power tools enhance productivity and improve the uniformity of cleaning. These tools can remove corrosion layers more efficiently and prepare surfaces to meet common maintenance standards. They are particularly effective in areas where abrasive blasting is not feasible, such as confined spaces or locations with strict environmental restrictions.

Mechanical Scaling

When sheet piles exhibit heavy corrosion or thick scale, more aggressive mechanical methods become necessary. Tools such as needle scalers and scaling hammers break up hardened layers of rust and marine growth without harming the underlying steel. This initial removal phase is often followed by secondary preparation methods to refine the surface. Mechanical scaling is essential for older structures or sheet piles that have been submerged for extended periods. It provides a stable base for the more precise cleaning and profiling steps that follow.

Abrasive Blast Cleaning

Achieving High Quality Profiles

Abrasive blasting is one of the most effective techniques for achieving the surface cleanliness and profile required for high performance coatings. By propelling abrasive media at high velocity, this method removes rust, scale, and old paint while creating an angular profile. Common specifications include SSPC SP 6 for commercial blast cleaning and SSPC SP 10 for near white metal. Marine applications often require higher cleanliness levels to limit the rapid onset of corrosion after coating application. Abrasive blasting is widely used in shipyards, waterfront construction, and heavy industrial maintenance.

Media Selection and Environmental Limits

The choice of abrasive media influences both the aggressiveness of cleaning and the texture of the final profile. Steel grit, garnet, and mineral abrasives are frequently used for sheet piling maintenance. Environmental considerations are critical, especially near waterways, where dust and spent abrasive must be contained. Projects may use vacuum blasting or enclosed blasting systems to comply with regulations. These measures ensure that the environment is protected while workers achieve a clean and consistent finish.

Water Based Cleaning Methods

High Pressure and Ultra High Pressure Water Jetting

High pressure water jetting cleans steel surfaces by dislodging loose rust, salts, and contaminants. Ultra high pressure systems can remove coatings entirely, exposing the original steel surface. These methods do not create a profile but maintain the steel’s existing texture. Because many coating manufacturers allow water jetted surfaces when the original profile remains intact, this method is suitable for maintenance programs that involve recoating rather than full restoration. Water jetting is especially effective at removing soluble contaminants, which are common in marine environments.

Benefits in Sensitive Environments

Water based cleaning methods are frequently selected when abrasive blasting is either restricted or not allowed. Water jetting minimizes airborne dust and eliminates the generation of spent abrasive. This approach is beneficial in harbors, inland waterways, and urban areas where environmental controls are strict. It also reduces the need for containment structures and can be used safely around nearby operations.

Specialized Rotary Brush Systems

Creating Repeatable Profiles

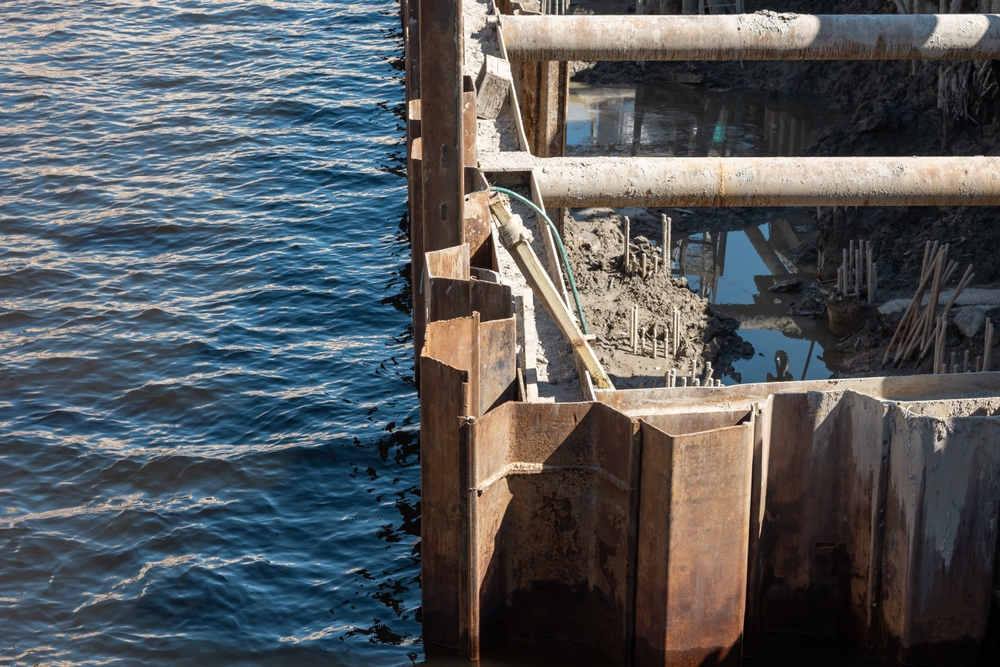

Rotary brush technology has become a valuable option for preparing steel surfaces during maintenance work. These systems use specially engineered wire belts to remove corrosion and create a uniform anchor pattern that resembles a blasted profile. They are often used when abrasive blasting is impractical or when crews require portable equipment that can reach difficult locations. Rotary tools offer repeatable performance and can help standardize results across large sections of sheet piling.

Applications in Confined or Restricted Areas

Sheet piles located beneath bridges, inside cofferdams, or along tight access corridors often cannot be blasted due to space limitations. Rotary tools are compact and easy to maneuver, making them ideal for these situations. Their ability to create a coating ready profile without abrasive media allows maintenance crews to operate efficiently under restrictive conditions. This versatility supports better planning and reduces downtime for marine and infrastructure projects.

Surface Profile Verification

Ensuring Coating Compatibility

Once the surface is cleaned, crews verify that the proper profile has been achieved. Tools such as digital profile meters, replica tape, and visual comparators are used to measure the roughness. Engineers compare these results to coating specifications before approving the surface for application. Verification is essential for long term performance because coatings rely on predictable anchor patterns to bond effectively with the steel.

Salt and Contaminant Testing

Chloride contamination poses a significant risk to steel surfaces, especially in marine environments. Even low concentrations can cause blistering or rapid underfilm corrosion. Testing methods such as Bresle patches measure salt levels and ensure that surfaces meet acceptable limits. Proper testing reduces the likelihood of coating failures and extends the service life of sheet pilings in demanding environments.

Long Term Protection Begins With Preparation

Surface preparation is the determining factor that influences the success of any sheet piling maintenance program. Whether the structure is part of a seawall system, a retaining structure, or a waterfront foundation, the longevity of protective coatings depends on how well the steel is cleaned and profiled. Crews benefit from methods that match the condition of the steel, the site limitations, and the coating requirements. Modern rotary wire brush tools provide additional flexibility by allowing operators to achieve consistent results in locations where blasting or large scale equipment cannot be used. With reliable preparation and adherence to standards, sheet piling systems can continue serving critical infrastructure and marine environments for many years.
