Rock Drilling Attachments for Efficient Pile Installation in Rocky Terrains

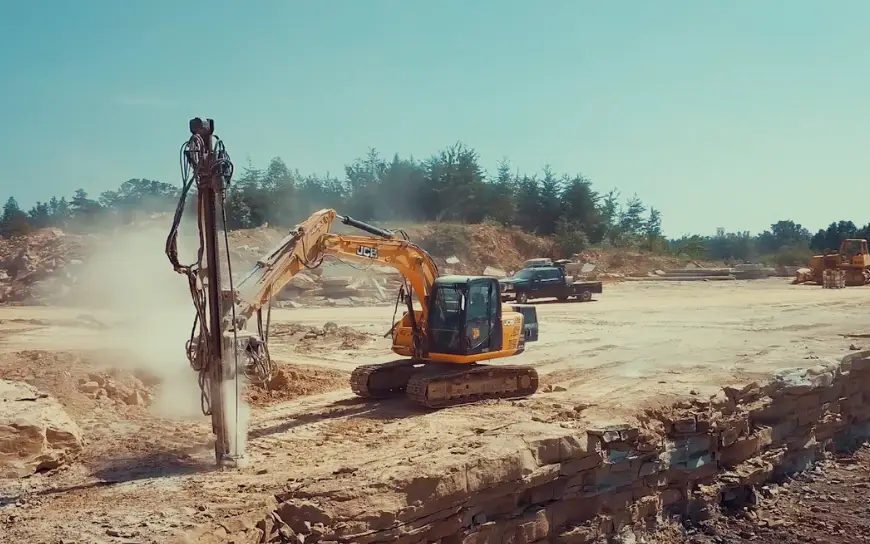

Excavator mounted drilling attachments offer greater reach and positioning control on uneven or restricted access sites. Their versatility allows contractors to use existing fleet equipment without costly replacements. Photo Credit: WORD Rock Drills

Pile installation becomes significantly more challenging when crews encounter hard rock, fractured formations, or mixed soil conditions. Contractors need drilling systems that can maintain productivity without sacrificing precision or safety. Modern rock drilling attachments are engineered to meet these demands by offering reliable penetration and consistent performance across a wide range of piling environments. Early planning supported by high quality drilling equipment can help contractors minimize delays and improve installation quality from the start.

Understanding the Demands of Rocky Terrains

Rocky terrains introduce variables that can quickly halt progress if the wrong tools are used. Hard rock layers increase wear on drilling components and require attachments that deliver high torque and impact energy. Mixed geological formations also create inconsistent resistance, which affects drilling speed and the alignment of piles. Specialized rock drilling attachments help overcome these challenges by providing controlled rotation and breaking power that standard equipment cannot match. These attachments are built to handle abrasive surfaces and maintain drilling stability even when conditions shift within a single borehole.

Key Features of Modern Rock Drilling Attachments

Power Transmission and Torque Output

One of the most important aspects of rock drilling attachments is their ability to deliver continuous torque. Hard rock surfaces demand strong rotation at consistent speeds, and high torque output ensures the drill bit maintains effective contact even under heavy load. This is particularly important for pile foundations where precise penetration is required to reach load bearing depths. Attachments designed for rock environments typically use durable drive motors and reinforced housings to withstand repetitive stress.

Vibration Control and Drilling Stability

Uncontrolled vibration can cause misalignment, equipment wear, and delays. Advanced rock drilling attachments use dampening systems that stabilize the drill string while reducing stress on both the operator and the machine. Better stability means straighter piles, reduced deviation, and improved long term performance of foundation systems. Vibration control also helps extend the service life of components such as drill bits, couplings, and mounts.

Compatibility Across Equipment Types

Rock drilling attachments are engineered to fit multiple carriers, including excavators, skid steers, and dedicated drilling platforms. This versatility allows contractors to adapt existing fleet assets instead of investing in entirely new machines. Excavator mounted systems are particularly useful for jobs with limited access or uneven ground because operators benefit from better reach, positioning, and control.

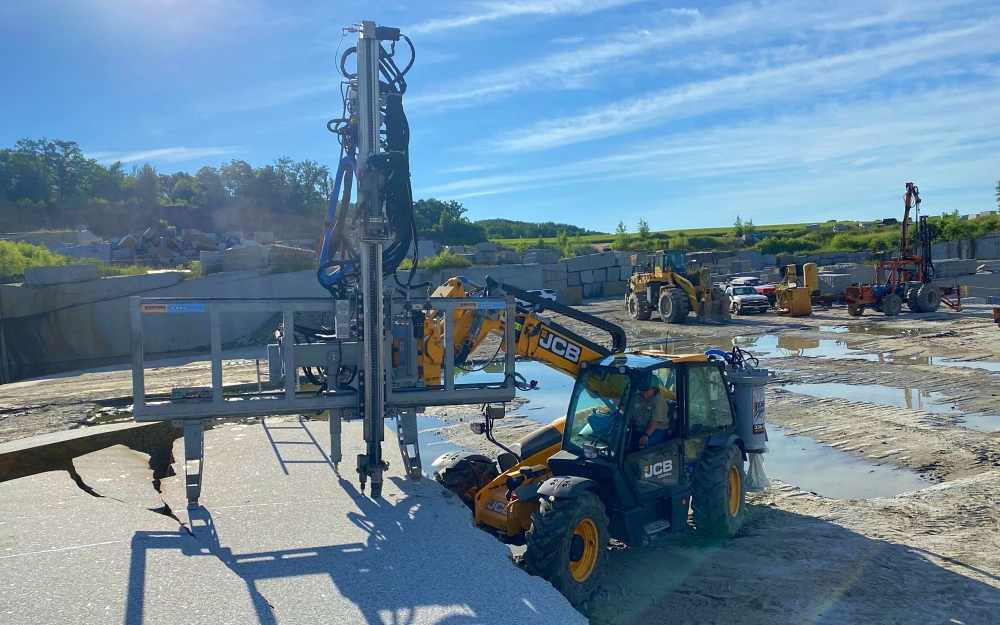

Modern attachments offer 360 degree mast rotation that improves precision when drilling near obstacles or along tight jobsite boundaries. This flexibility reduces the need for machine repositioning and speeds up installation. Photo Credit: WORD Rock Drills

Types of Rock Drilling Attachments for Pile Work

Top Hammer Drilling Systems

Top hammer drills deliver impact energy from a hammer mechanism located at the top of the drill string. This setup is highly effective for shallow to mid depth rock drilling operations. The repeated striking action fractures material while the rotation of the drill bit removes cuttings efficiently. These systems are used in applications such as micro piles, ground anchors, and utility installations.

Down the Hole Drilling Systems

Down the hole systems place the hammer directly behind the drill bit, providing strong and concentrated impact energy. This approach reduces energy loss because the hammer is located within the borehole rather than on the surface. These systems are ideal for deep and precise rock drilling requirements where straight alignment and clean hole walls are important.

Excavator and Skid Steer Attachments

Excavator attachments offer maneuverability and lifting power that help position the drilling tool accurately over each pile location. Skid steer attachments provide compact and mobile drilling capabilities for sites where space is limited or where operators need quick repositioning. Both types are compatible with a range of drilling heads, augers, and percussion tools that support rock penetration.

Applications in Pile Installation Projects

Foundation Systems in Hard Rock Regions

Infrastructure projects that require deep foundations often encounter bedrock or dense formations. Rock drilling attachments allow crews to install piles through these layers without excessive wear on standard augers or casings. This ensures that load bearing elements reach the required depth to meet engineering specifications.

Slope Stabilization and Anchoring

Rock drilling attachments are frequently used for installing ground anchors and soil nails in stabilization projects. The ability to drill at various angles and maintain consistent penetration is critical to ensuring the stability of retaining structures. Attachments designed for anchoring applications improve accuracy while helping crews meet structural requirements.

Marine and Coastal Piling

Marine environments often contain rocky sea floors or submerged formations that complicate pile driving. Rock drilling attachments enable contractors to pre drill holes for piles that will later be driven or grouted. Controlled drilling minimizes the risk of pile refusal and improves alignment during installation.

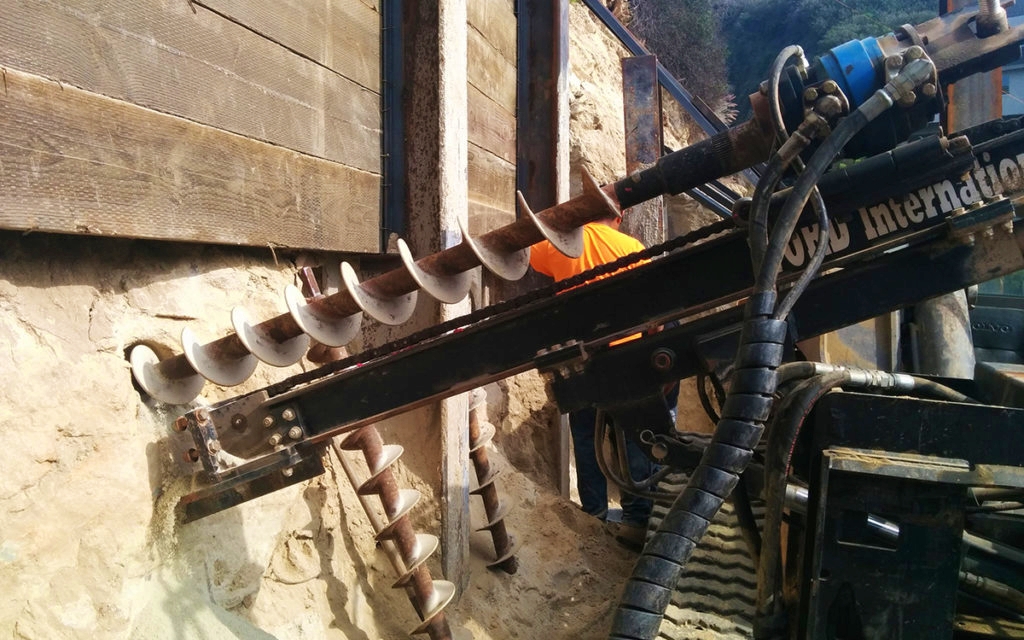

Using the correct bit type on a rock drilling attachment can significantly influence drilling speed and hole quality. Carbide tipped bits maintain sharpness longer and reduce the frequency of tool changes. Photo Credit: WORD Rock Drills

Selecting the Right Attachment for the Job

Choosing the proper attachment depends on the hardness of the material, the required depth, available carriers, and the level of drilling precision needed. Contractors should consider torque capacity, impact energy, compatibility, and maintenance requirements. They should also evaluate the expected wear on drill bits and other consumables. Proper selection not only improves production rates but also reduces long term operating costs.

Supporting Efficient Operations in Rocky Conditions

Rock drilling attachments play a critical role in ensuring successful pile installation in challenging geological environments. These tools improve drilling efficiency, enhance precision, and help prevent delays that come from equipment limitations. Contractors who invest in the right technology increase their ability to maintain schedule integrity and meet engineering standards even when working through dense or unpredictable formations. To maximize project performance, crews can benefit from integrating reliable rock drilling solutions that support consistent results from start to finish.
