Dredges are the backbone of the dredging industry — specialized vessels designed to excavate, transport, and place underwater material such as sand, silt, clay, or gravel. Whether the goal is maintaining navigational depth, reclaiming land, mining aggregates, or restoring the environment, choosing the right dredge is critical to a project’s success. With a wide range of dredge types, configurations, and power systems available, understanding how each one works — and where it performs best — helps buyers make confident, cost-effective decisions.

What is a Dredge?

A dredge is a machine designed to remove material from underwater environments and transport it to another location. It typically combines three core systems:

1. Excavation – loosening or cutting material from the seabed, riverbed, or lake bottom.

2. Transport – moving the dredged material, often as slurry through pipelines or in hoppers.

3. Placement – depositing the material at a designated site, either for disposal, reclamation, or reuse.

Different dredges achieve these steps using different technologies — hydraulic suction, mechanical excavation, or hydrodynamic relocation — depending on the material type, water depth, project size, and environmental requirements.

Types of Dredges

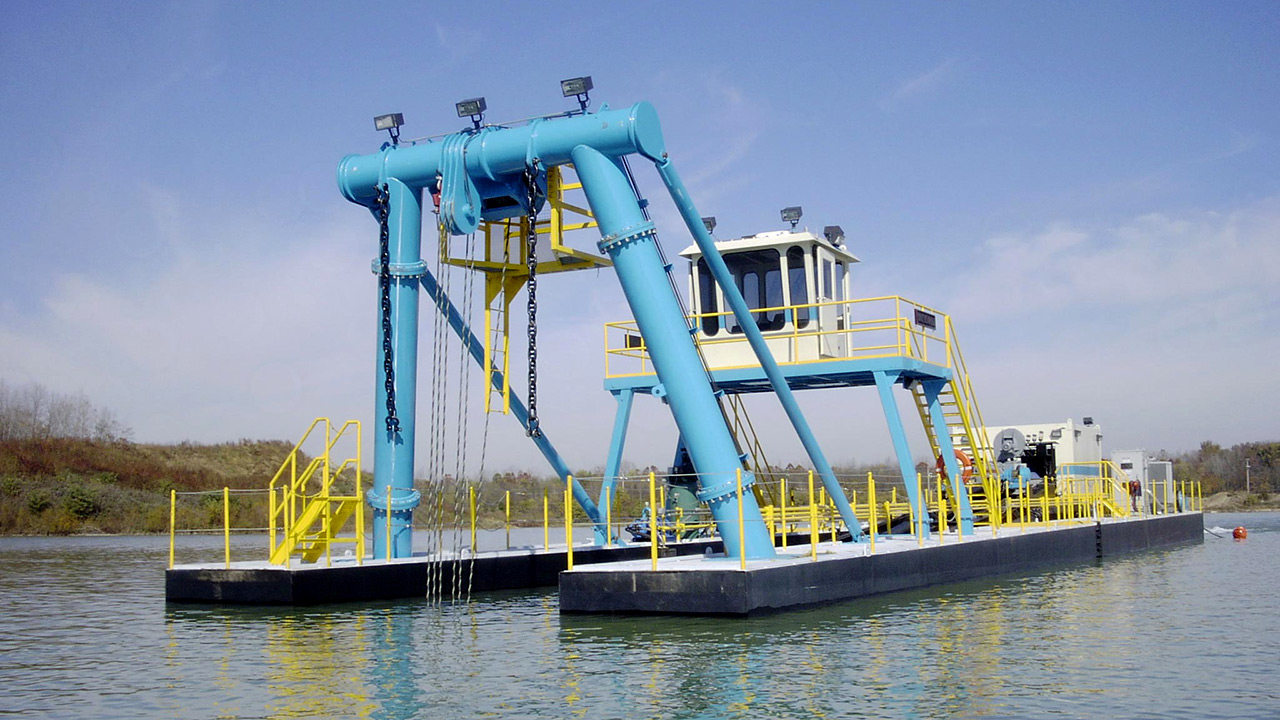

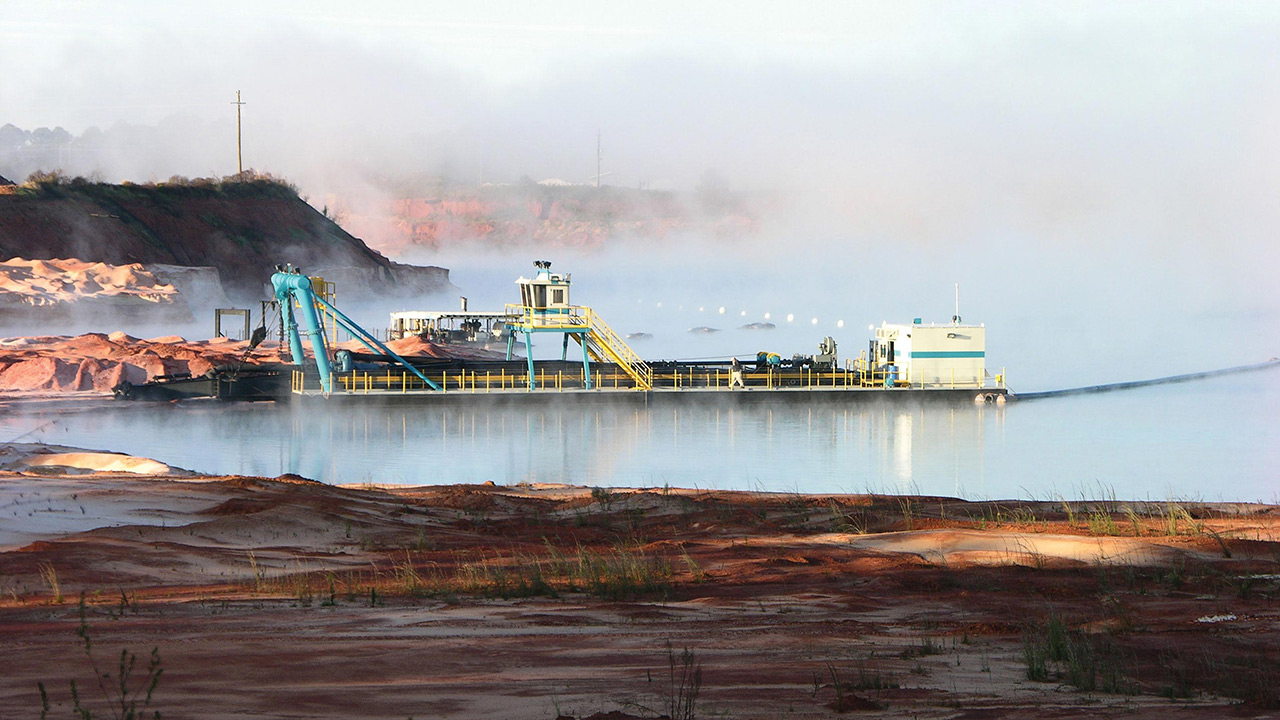

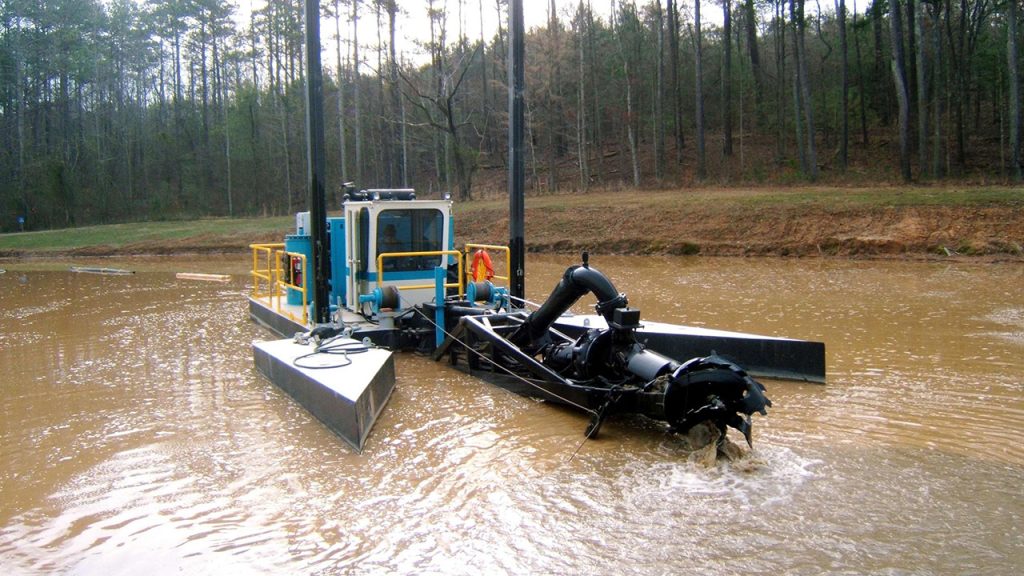

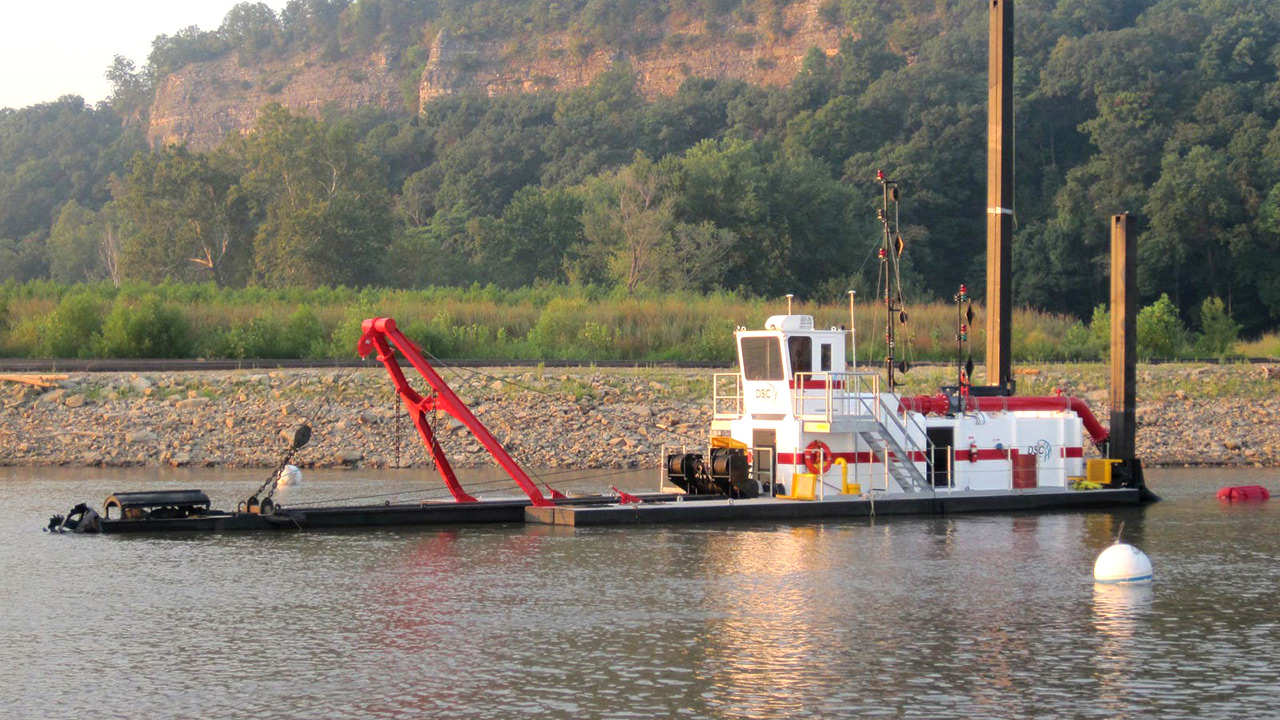

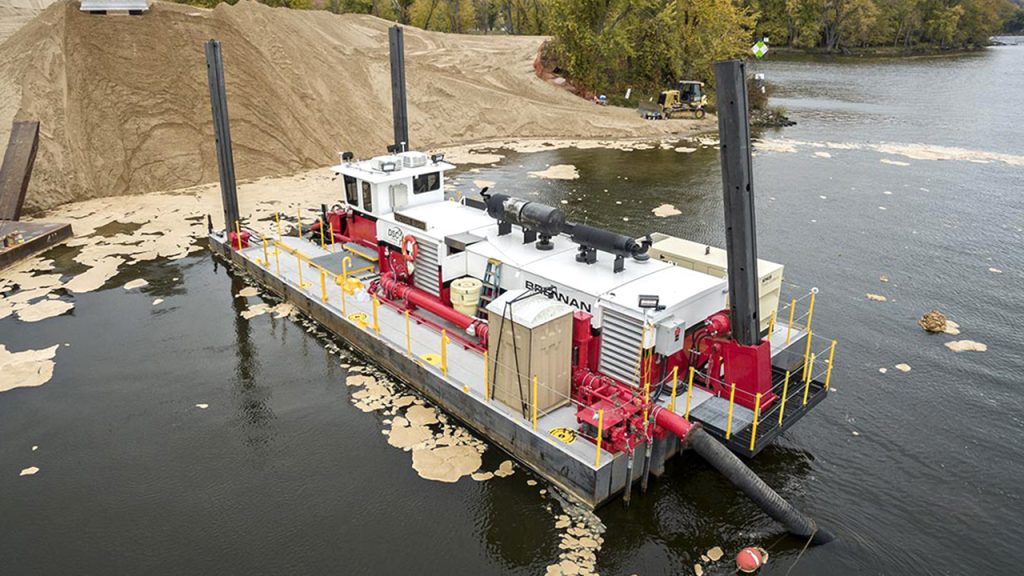

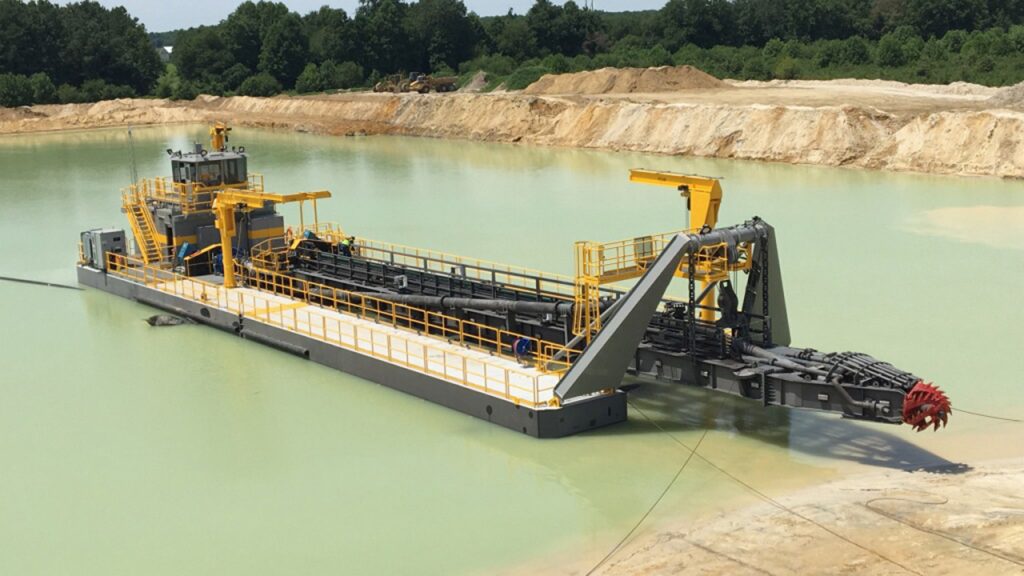

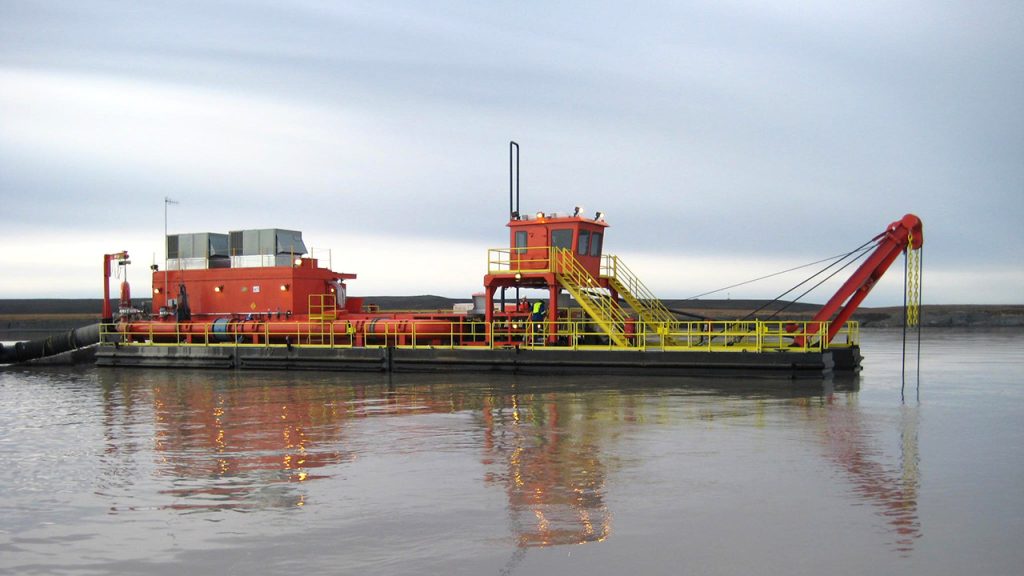

Cutter Suction Dredge (CSD)

The cutter suction dredge is one of the most widely used dredge types. Anchored on spuds, it uses a rotating cutterhead to break up compacted soils like sand, clay, and gravel. The loosened material is then drawn into a suction pipe and pumped through a discharge pipeline to the placement site.

CSDs are ideal for creating and deepening channels, mining sand and aggregates, and land reclamation projects. They deliver continuous production and can pump material over long distances with the help of booster stations. However, they require adequate swing room and are best suited for stable working conditions with limited waves or current.

Trailing Suction Hopper Dredge (TSHD)

A trailing suction hopper dredge is a self-propelled vessel equipped with one or more suction pipes and dragheads that trail along the seabed while the vessel moves forward. Dredged material is stored in the ship’s onboard hopper. Once full, the vessel sails to a placement area to discharge the load by bottom-dumping, pumping ashore, or rainbowing.

TSHDs excel in large-scale capital or maintenance dredging of sandy materials, especially in coastal and offshore conditions. They are fast, mobile, and efficient for long-haul operations, though less precise in confined or shallow areas.

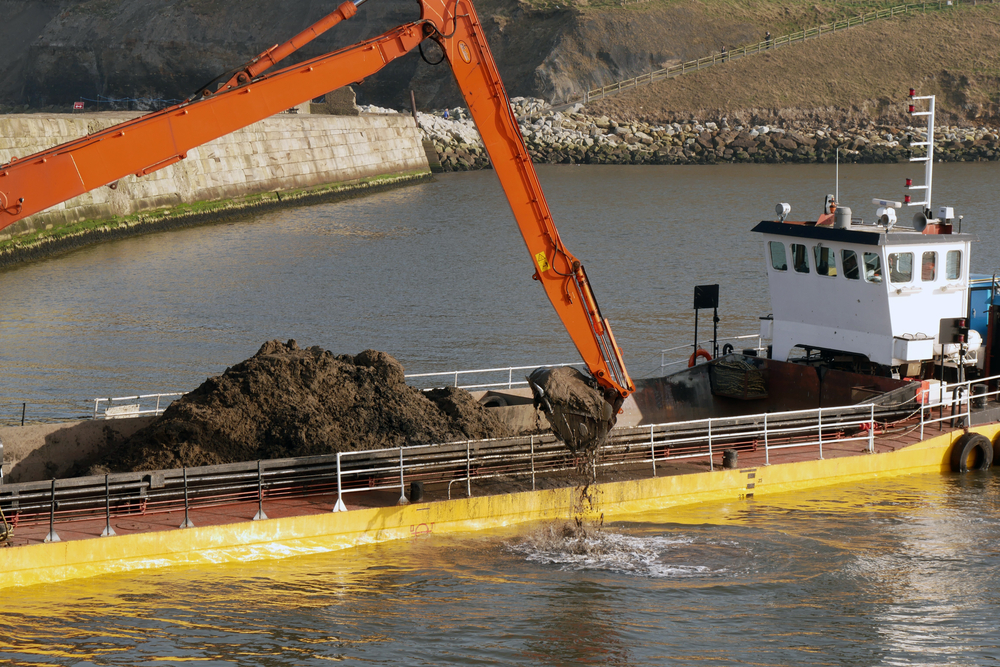

Backhoe and Excavator Dredges

These dredges use mechanical excavation — typically a large excavator or backhoe mounted on a pontoon or barge — to dig sediments and load them into barges or scows for transport. Their strength lies in accuracy and power, making them ideal for harbors, basins, and areas close to structures such as quay walls or bridges.

Mechanical dredges handle dense clays, debris-laden sediments, and hard materials more effectively than suction dredges. Their production rate, however, is cyclical and depends on bucket size and cycle time.

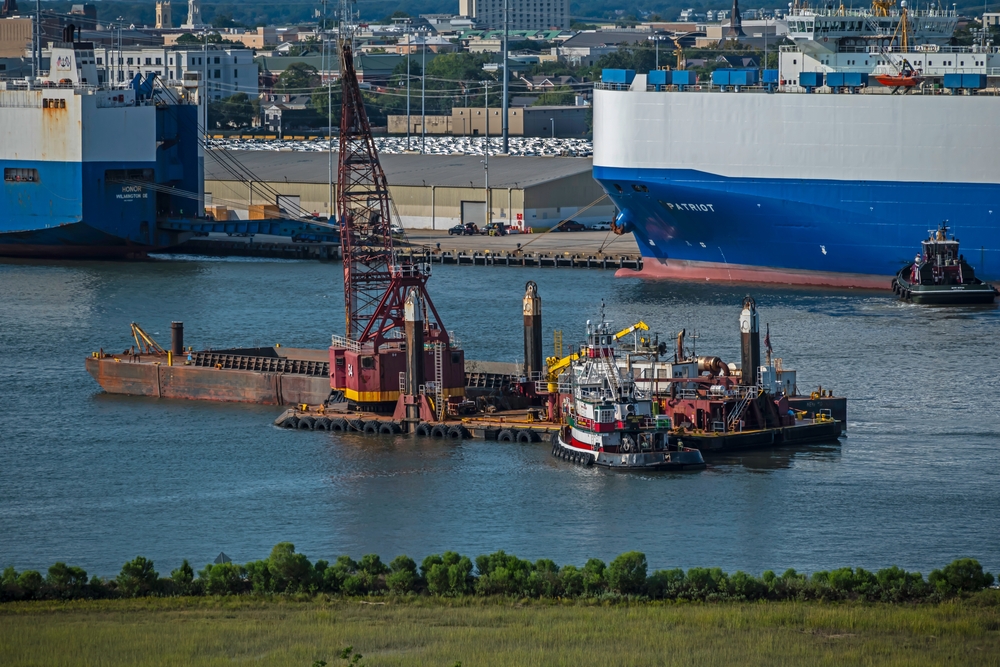

Grab (Clamshell) Dredges

Grab dredges operate with a wire-suspended clamshell bucket that opens and closes to scoop material from the bottom. They are particularly effective for deepwater dredging, selective excavation, and environmental cleanup where controlled removal is essential.

While not as fast as hydraulic systems, grab dredges offer excellent precision and flexibility, especially in confined urban harbors or contaminated sites requiring careful handling.

Bucket Ladder and Bucketwheel Dredges

Bucket ladder dredges use a continuous chain of buckets to dig and lift material, while bucketwheel dredges employ a rotating wheel with buckets or scoops. These designs provide steady production rates and excellent control over dredging depth and grade, making them popular in mining operations and compacted soils.

Water Injection Dredges (WID)

Water injection dredges use low-pressure jets to fluidize soft sediments, allowing natural currents or gravity to carry them to deeper areas. They are cost-effective for maintenance dredging of fine materials, particularly where regulatory frameworks allow hydrodynamic relocation. However, WIDs are limited to specific soil types and site conditions.

How to Choose the Right Dredge

Selecting the right dredge starts with understanding your project’s requirements:

1. Material Type: Fine silts and sands favor hydraulic dredges; dense clays or debris-laden sediments may require mechanical dredges.

2. Depth and Access: Deeper projects may call for large cutter suction or hopper dredges, while shallow or confined sites benefit from smaller, modular designs.

3. Placement Method: Will material be pumped through a pipeline, loaded into barges, or relocated hydrodynamically? The answer determines pump size, power, and dredge type.

4. Production Targets: Match dredge capacity to the required volume and schedule. Higher production demands typically favor larger CSDs or TSHDs.

5. Mobility and Site Conditions: If the project spans multiple sites, a self-propelled hopper dredge offers flexibility. Stationary dredges work well when anchored in one location for extended periods.

6. Environmental and Regulatory Factors: Turbidity limits, noise restrictions, and biological work windows may influence the choice of dredge type and equipment configuration.

Key Specifications to Compare

When evaluating potential dredges, buyers should concentrate on specifications that directly impact both performance and operating cost. Dredging depth defines the maximum reach of the vessel and dictates whether the dredge can complete the intended cut without modification. Pump capacity and installed power determine how efficiently material can be transported through pipelines or hoppers, affecting both output and fuel use. Excavation strength, expressed through cutter power on suction dredges or bucket size on mechanical dredges, governs the ability to break and lift compacted materials.

Pipeline diameter and total discharge length influence friction losses and required pumping head, which must be matched carefully to the dredge’s hydraulic system. The vessel’s mobility—whether self-propelled or stationary—affects logistics, relocation costs, and suitability for different site conditions. Increasingly, automation and GPS-guided positioning systems are becoming essential features, offering improved accuracy, real-time production monitoring, and detailed dredge logs that support payment verification and compliance.

Balancing these specifications against project demands ensures the chosen dredge meets production targets while staying within budget. A well-matched dredge not only maximizes efficiency but also reduces wear, downtime, and environmental risk across the life of the operation.

New vs. Used Dredges

New dredges offer the latest technology, energy efficiency, and customization options tailored to specific project needs. However, they come with longer lead times and higher upfront costs. Used dredges, when well-maintained, can provide cost savings and faster mobilization, though buyers should conduct thorough inspections of pumps, hulls, hydraulics, and electronics before purchase.

Ownership, Charter, or Rental

Contractors with frequent dredging work often benefit from owning their dredge, gaining full control over scheduling and operation. For occasional or short-term projects, chartering or renting can be more economical. Many manufacturers and specialized rental companies offer modular dredges and accessories that can be mobilized quickly and scaled to project scope.

Maintenance and Support

A dredge is only as reliable as its maintenance program. Regular inspection of wear parts — including pumps, liners, cutter teeth, and hoses — is essential to minimize downtime. Stocking critical spares, monitoring slurry velocity, and maintaining consistent operating parameters extend equipment life and improve cost efficiency. Choosing a manufacturer that offers training, spare parts support, and service agreements can significantly reduce lifecycle costs.

Buying a dredge is a major investment that requires technical understanding, accurate project assessment, and long-term planning. Each dredge type offers unique advantages, and the right choice depends on matching vessel capabilities to material conditions, production goals, and environmental constraints. By considering the factors outlined in this guide, contractors and owners can make informed decisions that deliver productivity, compliance, and profitability across dredging operations.
