TABLE OF CONTENTS

What is a Barge?
Types of Barges

The barge is a simple, robust type of vessel that is used to transport everything from timber piles to heavy equipment. It’s long, rectangular shape and flat bottom are meant to make the most efficient use of space for cargo. Most barges are pulled by tugboats, but there are some that move by their own power.

Barge Classification

A barge is classified based on how it is being used and how much weight it can hold. How the barge is designed is based in part on the type of water it will travel upon. For example, a barge meant to travel through narrow, inland waterways will be smaller than those built for seaports.

Under Utilized

The United States has about 25,000 miles of navigable waterways. Unfortunately, they are not used anywhere near their capacity. The 3,000 mile Intracoastal Waterway (ICW) that runs from Boston to Florida could relieve a lot of truck traffic from our highways. In fact, barge transport costs considerably less than other ways of moving goods.

Energy Efficient

A 2017 study by the Center for Ports and Waterways at the Texas A&M Transportation Institute show that barge transport is far more fuel efficient than truck transport. A truck can move a ton of cargo 145 miles on a single gallon of fuel. A barge can move that same ton 647 miles on a gallon of fuel. That same study showed that major spills happen far more often with cargo transported by truck and rail – making barge transport of toxic materials safer.

Inland Barge Design

Barge Carrying Pilings

Types of Barges

There are many types of barges, including:

Inland Barge

An inland barge is designed for use on small bodies of water. They provide a cost-effective alternative to truck and rail cargo transportation – particularly for oversized items. One barge can carry as much dry cargo freight as 17 semi-tractor trailers. That single barge can carry as much liquid cargo as 144 semi-tractor trailers.

Inland Barge Rig

An inland barge rig is constructed for offshore drilling. Drilling equipment is constructed atop the barge. The barge can then be moved from location to location wherever needed. The barge rig can be anchored in place or actually submerged underwater. An inland barge rig is used to drill wells in areas where the water is not too deep – such as a marsh. In fact, it is also known as a “swamp barge.”

Deck Barge

A deck barge has a platform used to carry everything from horses and cattle to construction equipment and materials. They are sometimes used to provide extra space for workers and equipment along the waterways.

Deck Barge

Deck Barge

Crane Barge

A crane – or spud – barge has a squared-off stern that can handle the weight of a crane. Additional support to keep the barge stable in heavy winds and active water is found in the bulkhead as well as the deck frame construction. Crane mats are used for traction. These floating cranes are used for offshore construction. They are also used to lift heavy materials while docked.

Hopper Barge

A hopper barge is used for the transport of sugar, grains, ore and other commodities. They have double-hull construction. Some commodities – like sugar – need protection from bad weather. So the hopper barge will be covered. Otherwise, it will be open.

Split Hopper Barge

A split hopper barge is used for dredging and filling. The dredged material is placed in the split hopper barge. The material is transported to where the fill is needed. The hull splits opened to drop the dredged material in place. The hull is closed via a hydraulic system.

Shale Barge

A shale barge is similar to a deck barge, with added hoppers for cargo. Shale barges are used to transport cargo from oil and gas drilling sites. This type of barge is regulated by the US Coast Guard to ensure strict environmental compliance.

Crane Barge

Hopper Barge

Liquid Mud Barge

A liquid mud barge is used to dispose of fluid material from inland oil drilling sites. They have storage bin tanks and pumps on board circulate the fluid material. Sometimes liquid mud barges are used for extra storage at a land-based facility.

Liquid Cargo Barge

A liquid cargo barge transports various types of liquid materials – such as gas, diesel, and asphalt. They are built to handle hazardous materials like benzene and methanol.

Ocean Barge

Where ships are too large to tread, they send an ocean barge. Like other barges they can navigate through shallow waters. However, they are built to handle harsh ocean conditions. This makes them heavier and more expensive than other types of barges. The additional weight of an ocean barge makes it more difficult to tow.

Power Barge

General Electric developed the power barge during World War II. This enabled power generation to be transported where needed. There are not as many in use today, but there are still some of these mobile power plant barges in operation around the world.

Liquid Mud Barge

Ocean Barge

Description

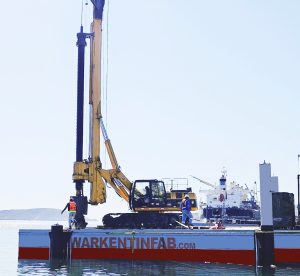

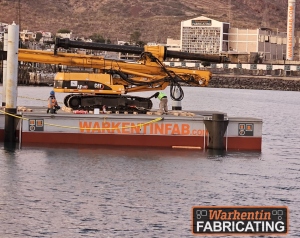

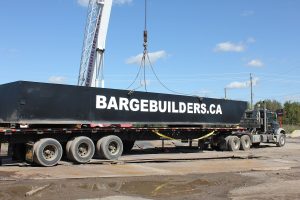

Warkentin Fabricating Inc. was established in 2018 by owner Jordy Warkentin. The company started by offering marine construction services (shoreline/erosion control, steel breakwalls, armour stone breakwalls, gabion stone, bluff grading) and metal fabrication. Warkentin Fabricating then expanded, offering work on jetties, docks, civil construction, ponds (large scale irrigation ponds, retention ponds, and wetlands). As shoreline jobs became more advanced and complicated, the company needed barges to complete some projects. Jordy found it difficult to find barges of the proper size needed, as well as the quality of the build for the projects it was needed for, hence the idea to build our own barges was born in 2019. The same barges we sell to companies all over the world for their projects are the same quality barges the crew at Warkentin Fabricating Inc. uses to do their own jobs. Five years have passed and our barge division is growing exponentially. Same quality, with much more knowledge and industry insight going into each new build. We specialize in sectional, one-piece, and hopper style barges, as well as push boats. We have 3 main series of barges – WARFAB 1, WARFAB X, and WARFAB XL. We can also custom build barges to proper specs for a project, as well as design and build hopper-style barges and push boats.

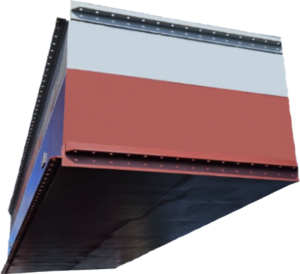

WARFAB XL Specs

40’L x 10’W x 7’H
Shell weight: approx 32,000lbs
1/4″ plate steel
16″ bracing
Payload Capacity: 59,000lbs (at 50% draft)
External Spud pocket: 24″ diameter
External Spuds: 22″ diameter

Description

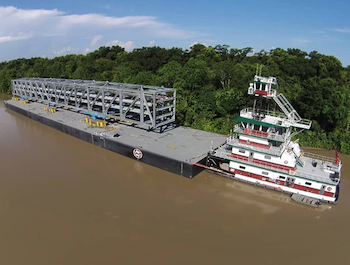

McDonough Marine Service, a leading company of deck cargo barges, has a large and varied fleet of flat deck barges available for charter. These barges are designed to carry cargo on deck and differ in size and structural design, depending on their intended use. Deck cargo barges include pipe, piling, fabricated structures, equipment, rock, palletized material, or even horses, cattle, and rocket boosters. In some instances, certain liquid cargos may be carried in the interior watertight compartments. Deck barges are also used as work platforms for workers and machinery, thereby serving as an extension of the land. Some of these barges may have raised rake decks. Please contact us for more information on the capacity, load marks, and deadweight of our flat deck barges.

Technical Specs

Size Approx. Short Ton Cargo Capacity at Freeboards of:
1′ 2′ 3′ 4′
60′ x 26′ x 5′ 125 75 30 ———
72′ x 54′ x 12’6″ 1135 1027 810 702
110′ x 30′ x 7′ 440 340 235 140
110′ x 40′ x 7′ * 555 485 355 220
110′ x 40′ x 7’6″ * 892 748 600 457
120′ x 30′ x 7′ 480 365 255 155
140′ x 34′ x 8′ 820 672 525 381

View entire list of specs here

McDonough Marine

3500 North Causeway Blvd., Ste. 900, Metairie, LA 70002

888-569-5929

https://www.mcdonoughmarine.com/

Description

Floatmaster, Inc. is incorporated in the state of Texas and based in Houston, Texas. Floatmaster is a sister company of Thrustmaster of Texas, Inc a world recognized designer and manufacturer or marine propulsion systems. For 40 years, Floatmaster and Thrustmaster of Texas have been designing and manufacturing heavy steel equipment for inland marine and offshore Customers around the world.

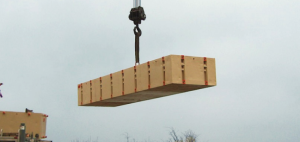

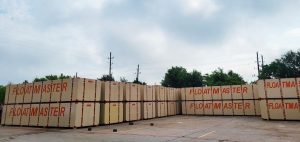

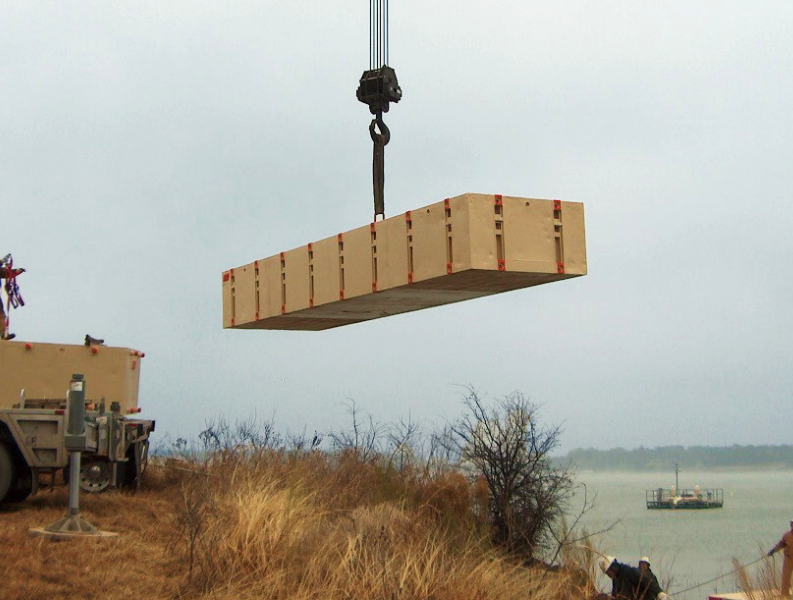

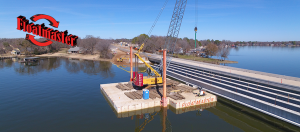

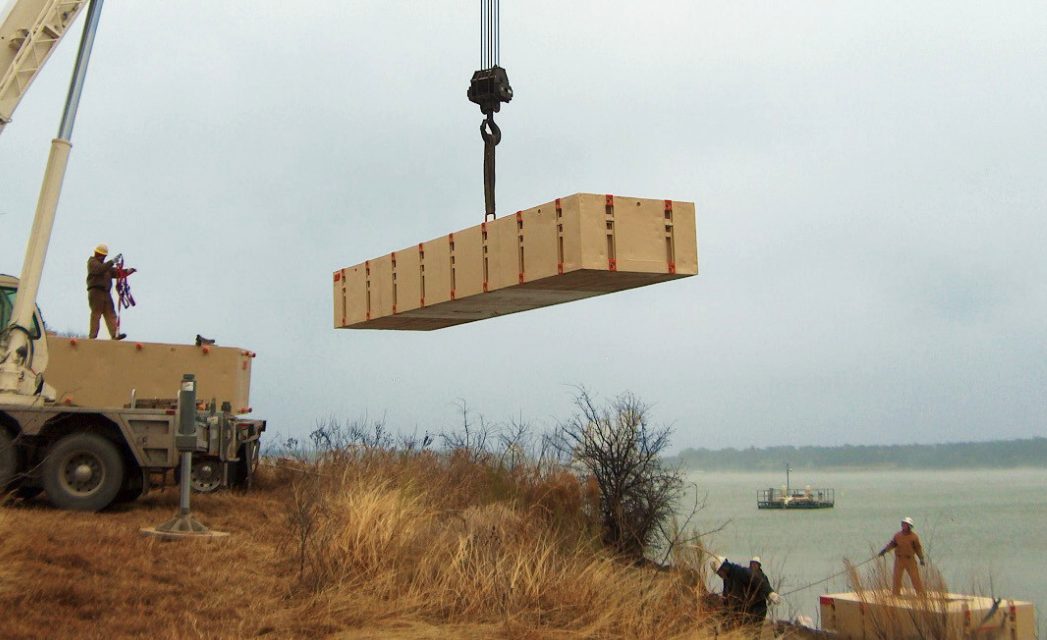

Special expertise has been developed in the design and manufacture of steel modular barge sections. Floatmaster systems are barges, causeways or bridges assembled from interlocking welded steel sections that are assembled together at the job site. The individual barge sections are robust standard units designed for transportation on standard truck and trailer combinations without the need for special permit loads. They are made in five feet and seven feet deep blocks of 40 x 10 and 20 x 10 feet. Rake sections, loading ramp sections and a host of accessories are available to facilitate assembly of very capable workboats.

The assembled systems can be used as construction barges, transportation barges, vehicle ferries, elevated bridges, causeways, floating excavators or dredges, crane barges, swamp or lake drilling rigs, cleanup barges, floating docks, pile driving barges, etc. Floatmaster offers a wide range of available accessories for the barge sections, including mooring winches, fairleads, steerable propulsion units, spuds, spud wells, elevating legs, bitts, chocks, cleats, bollards, and fenders.

Technical Specs

  • Five Foot Deep Sections
FOURTY FLOAT P/N FM5400 40 X 10 X 5 FT 25,600 LBS
TWENTY FLOAT P/N FM5200 20 X 10 X 5 FT 14,700 LBS
END RAKE P/N 10 X 10 X 5 FT 6,600 LBS
RAMP P/N 20 X 10 X 5 FT 9,900 LBS
  • Seven Foot Deep Sections
FOURTY FLOAT P/N FM7400 40 X 10 X 7 FT 35,600 LBS
TWENTY FLOAT P/N FM7200 20 X 10 X 7 FT 18,900 LBS
END RAKE P/N 10 X 10 X 7 FT 10,500 LBS
RAMP P/N 20 X 10 X 7 FT 14,700 LBS

Floatmaster, Inc.

6900 Thrustmaster Drive Houston, TX 77041 USA

713-937-6295

Description

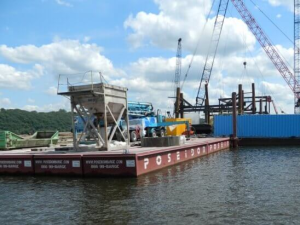

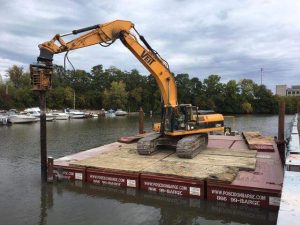

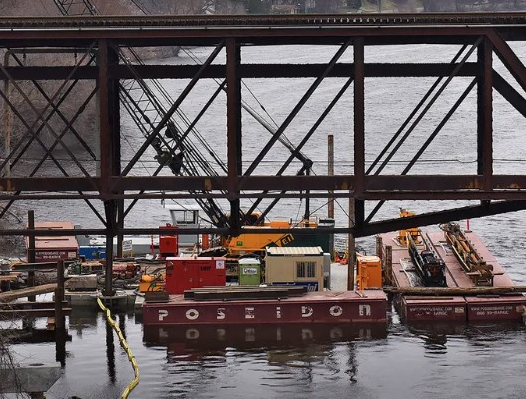

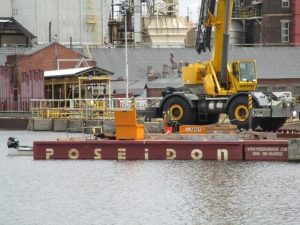

Poseidon, LLC d/b/a Poseidon Barge is a Portable Sectional Barge manufacturer located in Berne, IN. We rent and sell Portable Sectional Barges that are used in bridge construction, general marine construction, dredging, and other projects where it’s necessary to float heavy construction equipment, materials or men.

Poseidon® Barges are easily transported by truck, making them convenient for projects on inland rivers and lakes. Several stock locations throughout the US and the ability to haul two 5′ Poseidon® 1, 2 & Poseidon 3 Barges on step deck trailers saving you money and time. Click on the freight calculator application at the top of the page to demonstrate the savings in freight on every project by being able to haul 2 – 40′ x 10′ x 5′ barges per truck.

We carry new and used portable barges for sale and charter lease, which are used in the marine and dredge industry for applications such as floating cranes and gold dredging equipment. Sometimes known as pontoon barges, sectional barges or crane barges, Poseidon® Barges can be used for any of the projects you may have. Alongside our assortment of barges for sale and barge charters, we also supply equipment such as Hydraulic Barge Pushers, Poseidon® Winch units & Poseidon® Wood Crane Mats.

Poseidon P1, Poseidon P2, & Poseidon P3, Poseidon P10 & now the Poseidon ISO P4 Barges are fabricated for lasting quality and design. Our fabrication process includes coating the interior with a vegetable oil base rust inhibitor, a zinc base primer with a Baril Coating on the exterior and we apply zinc anodes on the exterior for additional corrosion control from electrolysis. Some of our competitors only offer these as upgrades. Poseidon Barge Ltd was awarded US Patent No. 8,079,320 for the perimeter frame system for use with fabrication of the steel barges. This coupled with the Patented Heavy Duty Roll Form, HSLA Steel Deck Construction with 20,000 psf Concentrated Load Capacity gives us a distinct advantage over our competition. Poseidon® has other patent pending systems as well. We are always looking for ways to improve the quality of our products.

Our staff can assist you in determining the number and type of barges you will need for your project, including new and used portable sectional barges which are also known as crane barges, marine barges, dredge barges, sectional barges or pontoon barges for sale or for charter lease. We can also assist with transportation requirements as well as on site set up.

It is our desire to not only offer quality lines of barges for sale, but to give you prompt, friendly and professional service throughout your project planning, bidding and construction.

Products

  • Poseidon I
  • Poseidon P1N
  • Poseidon 2
  • Poseidon 2 Hopper
  • Poseidon 3
  • Poseidon P-10
  • P4 ISO Container

Poseidon, LLC

725 E. Parr Road, Berne, IN 46711

866-992-2743

Description

Rasmussen Equipment / Wire Rope & Rigging Company in Seattle WA supplies major infrastructure construction contractors, large and small marine construction companies, barge and tugboat operators, timber and logging industry, fishing companies and general contractors of all kinds, an extensive line of industrial grade, marine construction products for rent and for purchase.

Based in Seattle, WA with a full line branch in Belle Chasse, LA and equipment distribution locations on both coasts, we carry the largest fleet of marines grade new and used winches in the United States. Our winch inventory includes Diesel Mechanical, Hydraulic, Electric, Air, and Manual powered winches with 1, 2, 3, and 4 drum configurations to meet all your marine or land construction needs. We have one of the largest fleets of sectional barges in the industry, including hundreds of 40’ and 20’ Sectional Barges, Rakes, and Ramps of both the Poseidon and Flexifloat brands. We stock all the supporting equipment to complete a full mooring solution including fairleads, deckleads, spuds, spudwells/pockets, sheaves, fenders, buoys, anchors, anchor chain, wire rope, and other assorted hardware. Lastly, we carry an extensive inventory of wire rope, rigging hardware, chain, synthetic and manila rope, web slings, and synthetic slings.

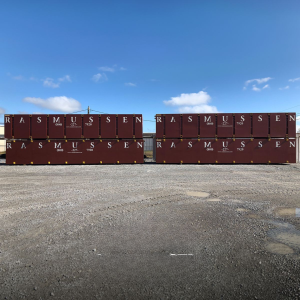

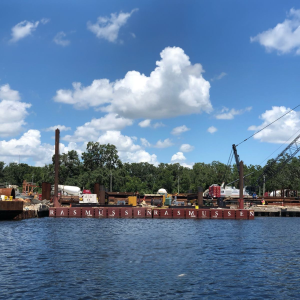

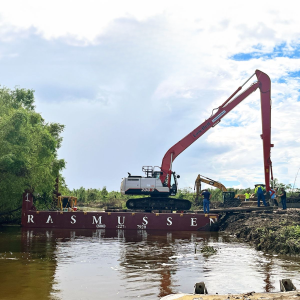

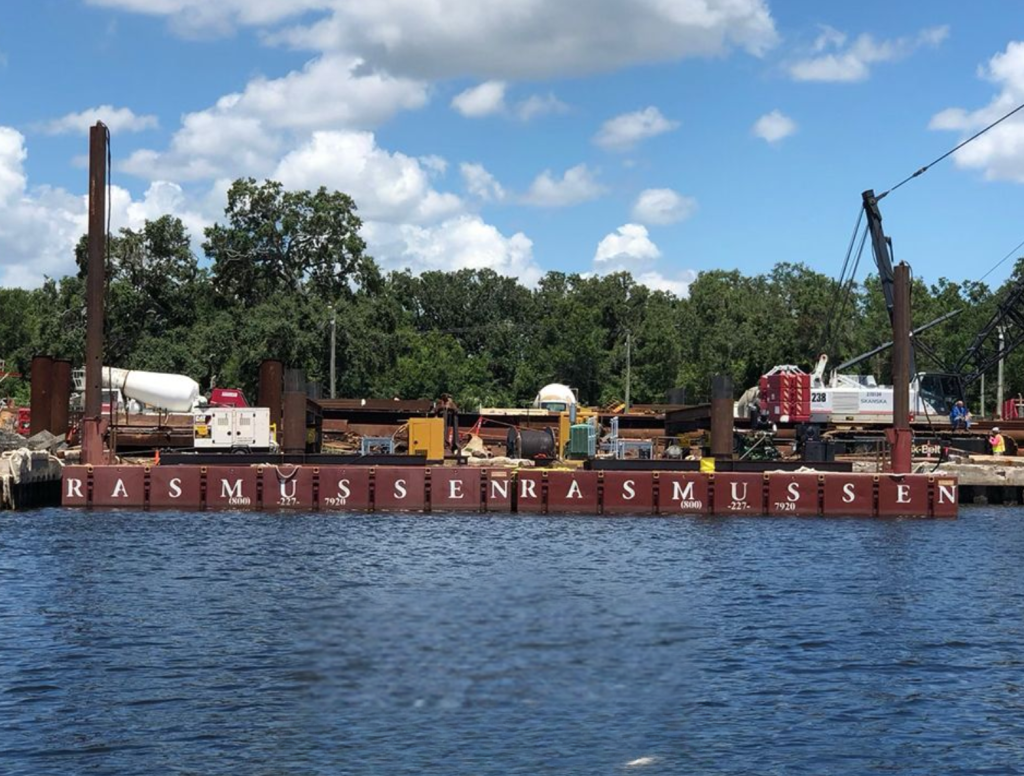

Sectional Barge Rentals

  • Barge – Spuds 18″
  • Barge – Spuds 20″
  • Barge – Spuds 24″
  • Barge – Thrusters
  • HYD Power Unit W/winch
  • Poseidon P1-4′
  • Poseidon P1n-4′
  • Poseidon P2-5′
  • Poseidon P2-7′

Rasmussen Equipment Company

Seattle, Washington

800-227-7920
